Product Overview

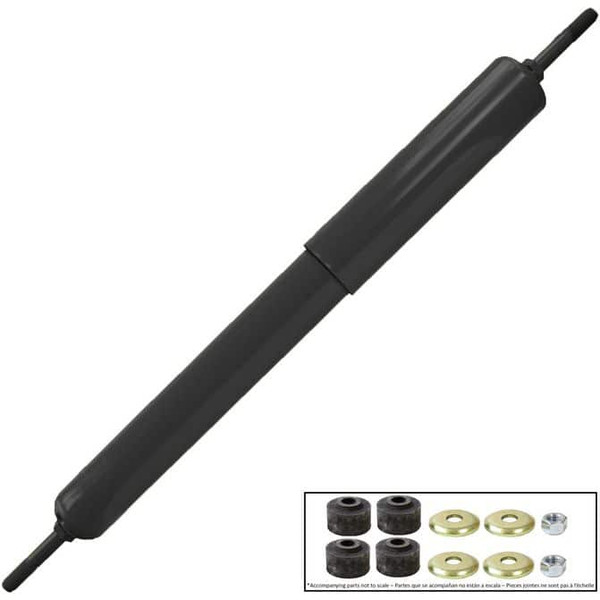

Magnum Shock Absorber
Benefit 1
Improved ride quality and response time thanks to nitrogen gas charge
Benefit 2
Equipped with a PTFE-coated bearing to reduce friction between rod and rod guide during operation
Benefit 3
Solid hydraulic lockout prevents overextension of the suspension
Benefit 4
Replacing worn out units with hardworking magnum shocks reduces excessive vibration
Benefit 5
Loop welding technique provides resistance weld with additional 360° weld
Benefit 6
Large 1-3/4-in. bore provides more efficient damping control to deliver a consistently smooth ride
Benefit 7
Delivers exceptional control and isolates impact-related noise, vibration, and ride harshness
Benefit 8
Contains a dust shield and hydraulic lockout
Benefit 9
For Kenworth, Peterbilt, and Volvo applications
VMRS
016008003
Sales Unit
EA
Quantity per Application
2.00
Height Each
3.35
Width Each
4.35
Length Each
24.1
Weight Each
10.34
UNSPSC
25172011
Shock Product Line / Series
Magnum
Extended Length
26.31 in
Compressed Length / Collapsed Length
15.94 in
Travel Length / Stroke
10.38 in
Reserve Tube / Intermediate Cylinder Diameter
2.37 in
Bore
1.75 in
Dust Shield / Dust Tube Included
Yes
Recoil Cutoff / Hydraulic Lock-Out
Yes
Upper Mounting Code
S6
Upper Mounting Description
Stem Mount - 3.5/16" Stem Length x 5/8"-11 Thread Pitch
Lower Mounting Code
S6
Lower Mounting Description
Stem Mount - 3.5/16" Stem Length x 5/8"-11 Thread Pitch
OE Application Make / Notes
Kenworth T270 2008-2022
